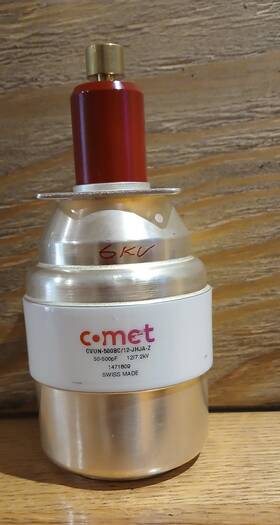

COMET CVUN-500BC-12-JHJA-Z Vacuum Capacitor CVUN-500BC/12-JHJA-Z 50-500PF 12/7.2KV

( Brand: Comet ), ( Manufacturer Part Number: CVUN-500BC/12-JHJA-Z ), ( Type: Variable Capacitor ), ( Capacitor Construction: Vacuum ), ( Capacitance Rating: 500 Pf )

Review COMET Cvun-500bc/12-jhja-z 12/7.2kv Variable Vacuum Capacitor

The Comet CVUN-500BC/12-JHJA-Z 50-500pf 12/7.2kV vacuum capacitor is a high-performance electrical component designed for various industrial applications requiring large capacitance and high voltage. This vacuum capacitor is engineered to deliver superior energy storage and discharge capabilities, making it an essential component in power supplies, pulsed power systems, and other electrical systems.

The CVUN-500BC model is a 50-500pf capacitor, which means it has a capacitance range between 50 and 500 picofarads. This capacitance value is suitable for applications where precise energy storage and fast discharge are essential. The capacitor is designed to operate at a voltage rating of 12kV and a working voltage of 7.2kV, making it suitable for high-voltage applications.

The CVUN-500BC vacuum capacitor is constructed using a vacuum technology, which ensures minimal leakage current and excellent insulating properties. The vacuum chamber is made of high-quality materials that provide superior durability and reliable performance even under extreme operating conditions.

The terminals of the capacitor are made of copper and are silver-plated to ensure good electrical contact and minimize oxidation. The capacitor is designed to operate in a temperature range between -20 C and 50 C, making it suitable for a wide range of industrial applications.

The CVUN-500BC vacuum capacitor is a robust and reliable electrical component, designed to provide long-term performance and minimal maintenance requirements. It is manufactured in accordance with international standards, ensuring high-quality and consistent performance. The capacitor comes with a warranty that covers defects in materials and workmanship for a specified period, providing peace of mind to customers.

In summary, the Comet CVUN-500BC/12-JHJA-Z 50-500pf 12/7.2kV vacuum capacitor is a high-performance electrical component designed for industrial applications requiring large capacitance and high voltage. Its vacuum technology ensures minimal leakage current and excellent insulating properties, making it a reliable and durable component for power supplies, pulsed power systems, and other electrical systems.

Pros and Cons of Buying Comet CVUN-500BC/12-JHJA-Z 50-500PF 12/7.2kV Vacuum Capacitor

The Comet CVUN-500BC/12-JHJA-Z 50-500PF 12/7.2kV Vacuum Capacitor is a critical component in various industrial applications. Let's evaluate the advantages and disadvantages of investing in this capacitor.

1. High Voltage Capability: This vacuum capacitor can handle a high voltage of 7.2kV, making it suitable for high-voltage applications.

2. Longer Service Life: Compared to other types of capacitors, vacuum capacitors have a longer service life due to their hermetically sealed design, which protects them from contaminants and moisture.

3. Low Leakage Current: Vacuum capacitors have a much lower leakage current than other capacitor types, which is crucial in applications where low current is essential.

4. High Efficiency: Vacuum capacitors operate with high efficiency, which leads to cost savings in the long run.

5. Stability: Vacuum capacitors maintain a stable voltage over a wide temperature range, which is beneficial in industrial applications.

1. Cost: Vacuum capacitors are generally more expensive than other capacitor types due to their complex manufacturing process.

2. Size and Weight: Vacuum capacitors are larger and heavier than other capacitor types, making them less portable and more challenging to transport and install.

3. Complex Installation: Installing a vacuum capacitor requires specialized knowledge and tools, which can add to the cost and complexity of the project.

4. Fragile: Vacuum capacitors are more fragile than other capacitor types and can be damaged easily during transportation or installation.

The Comet CVUN-500BC/12-JHJA-Z 50-500PF 12/7.2kV Vacuum Capacitor offers several advantages, including high voltage capability, longer service life, low leakage current, high efficiency, and stability. However, it also comes with disadvantages such as high cost, size and weight, complex installation, and fragility.

If you require a capacitor for a high-voltage application where low leakage current, high efficiency, and stability are essential, the Comet CVUN-500BC/12-JHJA-Z 50-500PF 12/7.2kV Vacuum Capacitor is an excellent choice, despite its high cost and complex installation process. If cost is a significant concern, or if the application does not require the specific features of a vacuum capacitor, consider alternative capacitor types.

Details:

COMET CVUN-500BC/12-JHJA-Z 50-500pF 12/7.2kV Variable Vacuum Capacitor Tested.

part #: cvun500bc12jhja prices

• $199.00-$1004.26

specifications capacitorelectron:

• brand: Comet
• mpn: Cvun-500bc/12-jhja-z
• type: Variable Capacitor
• capacitor construction: Vacuum
• capacitance rating: 500 Pf

general capacitorelectron:

• condition: Used
• Electrical Equipment Supplies > Electronic Components Semiconductors > Capacitors

returns capacitorelectron:

• policy: No Returns

offer capacitorelectron:

• quantity: 1
• sold: 0
• started: August 28, 2025
• availability: In Stock
• best offers: True
• options: Ship-to-home

shipping capacitorelectron:

• cost: $0.00
• transit: 5-9 Days
• type: Calculated
• carrier: USPS
• service: USPS Ground Advantage
• class: Standard

seller capacitorelectron:

• city: Eaton, Colorado
• rating: 100.0%
• # reviews: 209

payments capacitorelectron:

• other
• wallet: Google-pay
• credit card: Diners-club
