MTCT 20120606 Capacitor Circuit Board 35V 6800UF
( Brand: Mtct ), ( Manufacturer Part Number: 20120606 ), ( Part Type: Circuit Board ), ( Country/region Of Manufacture: China )
Review MTCT 2012 0606 Capacitor Circuit Board 35v 6800uf
The MTCT 20120606 capacitor circuit board is a high-performance electronic component designed for use in various electrical applications. This capacitor, specifically, is a 35V, 6800 F electrolytic capacitor, which is commonly used for filtering and energy storage in power electronics.
The capacitor itself is a round, cylindrical component with a diameter of approximately 35mm and a height of around 77mm, including the leads. The capacitance value of 6800 F (microfarads) indicates that it can store a substantial amount of electrical charge. The voltage rating of 35V means that it can safely handle an input voltage of up to 35 volts without risk of damage.
The circuit board on which this capacitor is mounted is a well-designed PCB (Printed Circuit Board) that ensures proper connection and protection of the capacitor. The board is made of high-quality FR-4 epoxy glass material, which provides excellent electrical insulation and rigidity. The copper traces on the board are thick and evenly spaced, ensuring efficient power distribution and minimal resistance.
The capacitor is secured to the board using high-strength screws and insulating washers to prevent electrical shorts. The leads connecting the capacitor to the board are heavy-duty, copper wires with a diameter of approximately 2mm, providing excellent conductivity and durability.
This MTCT 20120606 capacitor circuit board is a reliable and robust solution for those seeking a high-capacity, high-voltage capacitor for their electrical projects or applications. Its large capacitance value and voltage rating make it suitable for various power filtering and energy storage applications, while its well-designed circuit board ensures efficient power distribution and reliable performance.
The MTCT 20120606 capacitor circuit board is a 35V, 6800uf capacitor designed for various electronic applications. Here are some potential pros and cons of buying this capacitor:
Pros:1. High Capacitance: With a capacitance of 6800uf, this capacitor can store a substantial amount of electrical charge, making it suitable for applications requiring large energy storage.
2. Voltage Rating: The 35V voltage rating is suitable for a wide range of electronic circuits, making this capacitor a versatile choice for many applications.
3. RoHS Compliant: The capacitor is RoHS compliant, which means it does not contain any restricted hazardous substances, making it an eco-friendly choice.
4. Economical: This capacitor is relatively inexpensive compared to other capacitors with similar specifications, making it a cost-effective option for many applications.
Cons:1. Size and Weight: Due to its large capacitance and voltage rating, this capacitor is larger and heavier than some other capacitors, which may make it less suitable for applications with limited space or weight constraints.
2. Leakage Current: Like all capacitors, this one has a certain amount of leakage current, which can cause a gradual loss of charge over time. However, the amount of leakage current for this capacitor is within the normal range for capacitors of this size and voltage rating.
3. Temperature Sensitivity: The capacitance of this capacitor is temperature-sensitive, which means that its capacitance value may change with temperature. This can affect the performance of some electronic circuits, so it is essential to consider the operating temperature range of the circuit when using this capacitor.
In conclusion, the MTCT 20120606 capacitor circuit board is a versatile and cost-effective option for applications requiring a large capacitance and a reasonable voltage rating. However, its size and weight may be a drawback for some applications, and its temperature sensitivity should be considered when selecting the operating temperature range for the circuit. If the size, weight, and temperature sensitivity are acceptable for your application, then this capacitor could be a good choice.
Details:

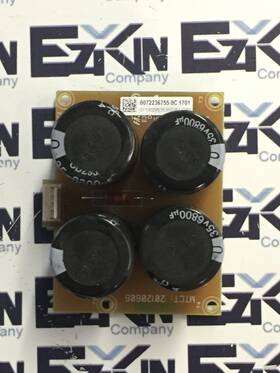

Power filtering and energy storage module featuring four large electrolytic capacitors, ideal for smoothing DC voltage in power supply or motor drive applications.Manufacturer: MTCT Board Marking: 2012 0606Component Type: Capacitor Circuit Board Capacitor Rating: 6800 F, 35VDC x4 Total Capacitance: High capacitance array ripple suppression load balancing voltage max Application: bus filtering, inrush current handling, control, amplifier circuits Mounting: PCB with through-hole components; screw chassis mount Note: Passive board ensure compatibility system to avoid over voltage damage Country of Origin: China.
part #: 20120606 price
- $29.50
specifications capacitorelectron:
- brand: Mtct
- mpn: 20120606
- part type: Circuit Board
- country/region of manufacture: China
shipping capacitorelectron:
- type: Calculated
- carrier: UPS
- transit: 2-5 Days
- service: UPS Ground, UPS Next Day Air Saver, UPS Next Day Air
- class: Standard, One-day
- cost: $8.56
seller capacitorelectron:
- # reviews: 6204
- city: Middletown, Ohio
- rating: 99.5%
general capacitorelectron:
- Electrical Equipment Supplies > Electronic Components Semiconductors > Capacitors
- condition: Used
offer capacitorelectron:
- availability: In Stock
- best offers: True
- options: Ship-to-home
- quantity: 1
- sold: 0
- started: August 7, 2025
returns capacitorelectron:
- time: 30 Days
- paid by: Buyer
- method: Money back
- policy: Returns Accepted
payments capacitorelectron:
- other
- wallet: Paypal
- credit card: Discover
